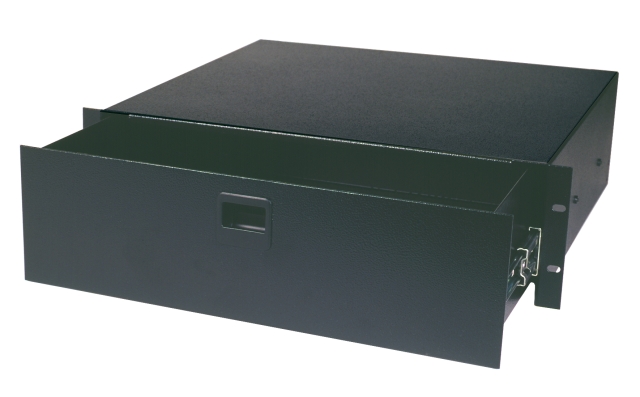

AAD & ATD Series Drawers

Featuring aluminum front, steel top and bottom, and ball bearing slides. These premium quality drawers are offered with lock (optional) and interchangeable front panel. This unique feature provides the ability to mount equipment inside or for changing to lock/unlock version in the field. ATD series drawers have a black wrinkled powder coat finish. AAD series drawers have a flat black powder coat finish with line grain and black anodized front. AADL & ATDL are locked versions of the drawer.



P/N DEPTH RU DIMENSIONS (in.)
AAD-2/ATD-2 14 1/2 in. 2RU 3 1/2 x 14 1/2 x 17 5/8
AAD-3/ATD-3 14 1/2 in. 3RU 5 1/4 x 14 1/2 x 17 5/8
AAD-4/ATD-4 14 1/2 in. 4RU 7 x 14 1/2 x 17 5/8
AADL-2/ATDL-2 14 1/2 in. 2RU 3 1/2 x 14 1/2 x 17 5/8
AADL-3/ATDL-3 14 1/2 in. 3RU 5 1/4 x 14 1/2 x 17 5/8
AADL-4/ATDL-4 14 1/2 in. 4RU 7 x 14 1/2 x 17 5/8

Specify ATD/AAD when ordering

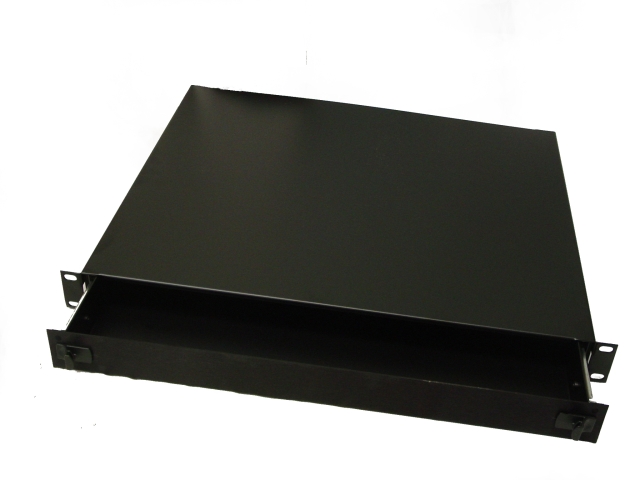

  AAD & ATD Series Drawers  - AAD-1

AAD-1 is a 1RU drawer.  It is 14.5” deep and it has ball bearing slides.  It opens up 10.5”, and it has a line grained and black anodized front panel.  The finish on the drawer is flat black powder coat finish.

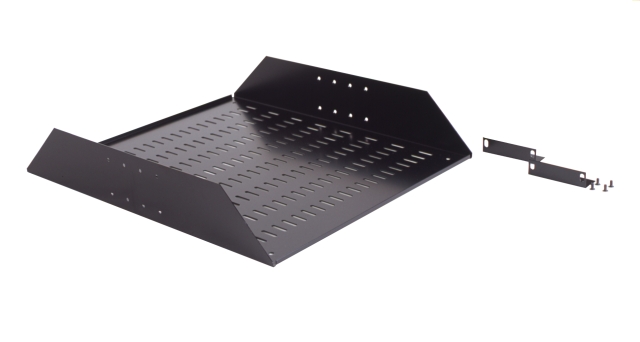

SCVT-2 Series

16 GA CRS, steel rack tray, vented center weight tray with adjustable mounting brackets, ideal for installation in relay racks, featuring smooth semi-gloss black powder coat finish






P/N RU HEIGHT (in) x 19 WEIGHT CAPACITY OVERALL DEPTH SHIPPING WEIGHT
SCVT-S 2RU 3.50 50 lbs 19 6.6 lbs

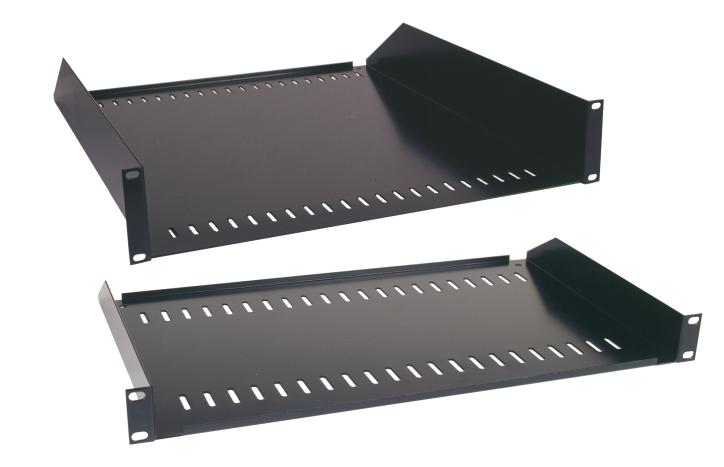

SHRT Series

14 GA CRS, no front flange, steel heavy duty rack trays, featuring smooth semi-gloss black powder coat finish. The trays have ventilation holes on bottom, front & back



P/N RU HEIGHT (in) x 19 WEIGHT CAPACITY (lbs) DEPTH SHIPPING WEIGHT
SHRT-1 1RU 1.75 50 10.875 5.1
SHRT-2 2RU 3.50 75 14.500 7.6
SHRTD-2 2RU 3.50 75 22.000 12.2
SHRT-3 3RU 5.25 95 14.500 7.6
SHRT-4 4RU 7.00 95 14.500 8.95



SRT Series

16 GA CRS, steel rack trays flanged for strength – front & back featuring smooth semi-gloss black powder coat finish. The trays have ventilation holes on bottom, front & back



P/N RU HEIGHT (in) x 19 WEIGHT CAPACITY (lbs) DEPTH SHIPPING WEIGHT
SRT-1 1RU 1.75 35 10.875 4.0
SRT-2 2RU 3.50 50 14.500 6.2
SRT-3 3RU 5.25 75 14.500 6.8
SRT-4 4RU 7.00 85 14.500 7.2

SRT Series trays are also available with a flat black powder coat finish. To order this finish, add “F” after the part number

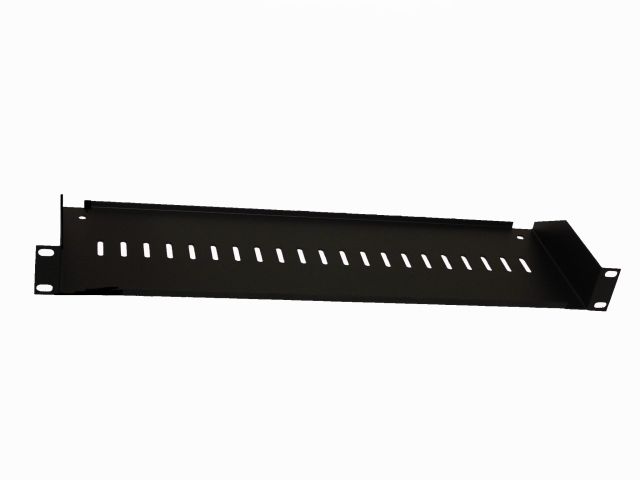

    SRT Series - SRTS-1

SRTS-1 is a 1RU short universal rack tray.  It is made from 16GA CRS, with vented holes at the bottom.  It is 17 5/8” wide by 5 ½” deep.  It comes with semi-gloss or flat black powder coat finish.  Sold in Boxes of two.

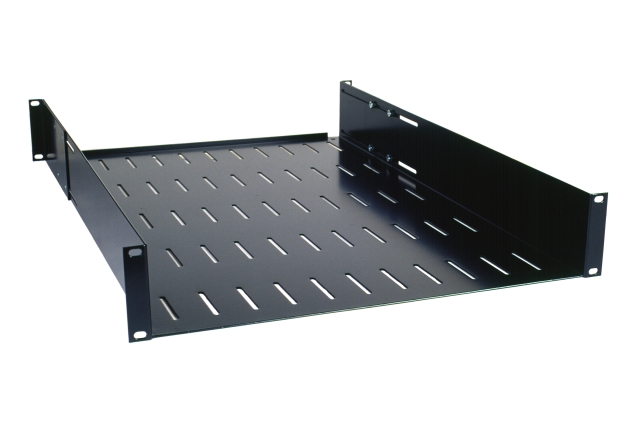

SVDT-2 Heavy Rack Shelf

Made from heavy duty 14 GA CRS, SVDT-2 has a depth of 26.5” and is built for use in conjunction with deep rackets (27” – 32”). This heavy duty rack shelf comes with rear brackets for extra weight support. Rear support bracket range: 23.25” – 31.33”



P/N DEPTH RU WEIGHT CAP. SHIPPING WEIGHT
SVDT-2 26.5" 2RU 350 lbs 14.8lbs
