AMP-1 Panel/Inserts

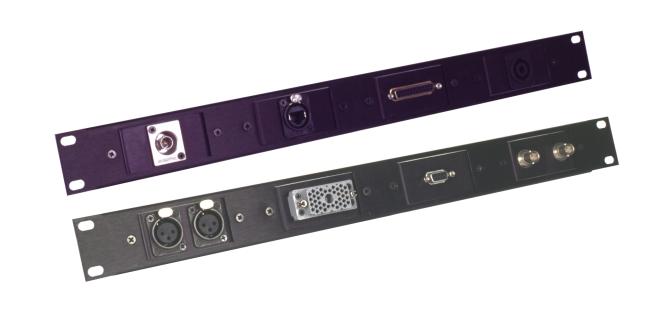

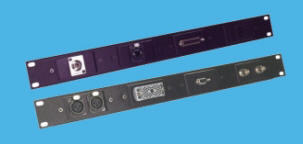

Welcome to the world of 1RU! This flexible and innovative 1RU (1.75”) aluminum panel has four cutouts for “off the shelf” DECORA style inserts, modules from other manufacturers, or for any of RUI’s wide variety of manufactured inserts. The AMP-1 panel is made from 1/16" aluminum, black anodized, line grained, flanged for strength with countersunk holes for flush mounting of inserts. Inserts are tapped and hardware is provided. (AHMP-1 Hinged version, same spec as AMP-1)
| P/N | DESCRIPTION (Inserts do NOT include connectors) |
| AMP-1 | 1RU Panel w/4 DECORA cutouts |
| AHMP-1 | 1RU Hinged Panel w/4 DECORA cutouts |
| AMPBL | Blank Insert |
| AMPBNC | Insert: 1 x .470 x .500 BNC, "D" type |
| AMPBNCX2 | Insert: 2 x .470 x .500 BNC, "D" type |
| AMPBNCX3 | Insert: 3 x .470 x .500 BNC, "D" type |
| AMPNC | Insert: 1 x Neutrik "D" Series XLR |
| AMPNCX2 | Insert: 2 x Neutrik "D" Series XLR |
| AMPAV | Insert: 1 x Neutrik "D" Series XLR & 1 x BNC |
| AMPDB9 | Insert: 1 x DB-9 Computer Connector |
| AMPDB9X2 | Insert: 2 x DB-9 Computer Connector |
| AMPDB25 | Insert: 1 x DB-25 Computer Connector |
| AMPE38C | Insert: 1 x ELCO 38 Pin Connector |
| AMPE56C | Insert: 1 x ELCO 56 Pin Connector |
| AMPE90C | Insert: 1 x ELCO 90 Pin Connector |
| AMPBCJ | Insert: 1 x Canare BCJ Connector |
| AMPBCJX2 | Insert: 2 x Canare BCJ Connector |
| AMPSDXM | Insert: 1 x Switchcraft XLR Male |
| AMPSDXMX2 | Insert: 2 x Switchcraft XLR Male |
| AMPSDXF | Insert: 1 x Switchcraft XLR Female |
| AMPSDXFX2 | Insert: 2 x Switchcraft XLR Female |
| AMPRJ | Insert: 1 x RJ45 Connector |
| AMPRJX2 | Insert: 2 x RJ45 Connector |
| AMPNY110 | Insert: 1 x Neutrik NE8FAV-Y110 Connector |
| AMPDIN | Insert: 1 x DIN Connector |
| AMPDINX2 | Insert: 2 x DIN Connector |
